SPECpower_ssj2008 Host 'Node-18' Performance Report

SPECpower_ssj2008

Host 'Node-18' Performance Report

Fujitsu PRIMERGY BX920 S2 (Intel Xeon X5675)			ssj_ops@100% = 948,727 ssj_ops@100% per JVM = 474,363
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Multi Node
Tested By:	Fujitsu	Test Location:	Paderborn, NRW, Germany	Test Date:	Aug 8, 2011
Hardware Availability:	Mar-2011	Software Availability:	Jun-2011	Publication:	Oct 6, 2011
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Set Identifier:	BX920 S2
Set Description:	Set of identically configured Fujitsu PRIMERGY BX920 S2 Server Blades
# of Identical Nodes:	18
Comment:	None

Hardware
Hardware Vendor:	Fujitsu
Model:	PRIMERGY BX920 S2 (Intel Xeon X5675)
Form Factor:	Blade
CPU Name:	Intel Xeon X5675
CPU Characteristics:	6-Core, 3.06GHz, 12MB L3 Cache
CPU Frequency (MHz):	3067
CPU(s) Enabled:	12 cores, 2 chips, 6 cores/chip
Hardware Threads:	24 (2 / core)
CPU(s) Orderable:	2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	12 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	12
# and size of DIMM:	6 x 2048 MB
Memory Details:	2GB 2Rx8 PC3L-10600E ECC CL9; slots 1A, 1B, 1C, 1D, 1E, 1F populated
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x 64GB, SSD, 2.5" SATA (Fujitsu S26361-F3298-E64)
Disk Controller:	LSI Adapter, SAS 3000 series, 4-port with 1064E (onboard)
# and type of Network Interface Cards (NICs) Installed:	4 x Intel 82575EB Gigabit Backplane Connection (onboard)
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS):	Microsoft Windows Server 2008 R2 Enterprise with SP1
OS Version:	Version 6.1.7601 Service Pack 1 Build 7601
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_26
JVM Command-line Options:	-server -Xmx4g -Xms4g -Xmn3500m -XX:SurvivorRatio=55 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=12 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity:	start /affinity [0xFFF,0xFFF000]
JVM Instances:	2
JVM Initial Heap (MB):	4096
JVM Maximum Heap (MB):	4096
JVM Address Bits:	64
Boot Firmware Version:	3D59
Management Firmware Version:	5.51
Workload Version:	SSJ 1.2.6
Director Location:	Controller
Other Software:	None

Set "Adjacent Sector Prefetch = Disable" in BIOS.
Set "Hardware Prefetch = Disable" in BIOS.
Set "DCU Streamer Prefetch = Disable" in BIOS.
Set "Data Reuse Optimization = Disable" in BIOS.
Set "Enhanced Idle C-States = Enable" in BIOS.
Set "Intel Turbo Boost Technology = Disable" in BIOS.Set "USB Host Controller = Disable" in BIOS.
Set "Memory Speed = Efficiency" in BIOS.

None

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.

SPECpower_ssj.props input.load_level.number_warehouses set to 24 due to a known inconsistency in processor reporting with the JVM used.

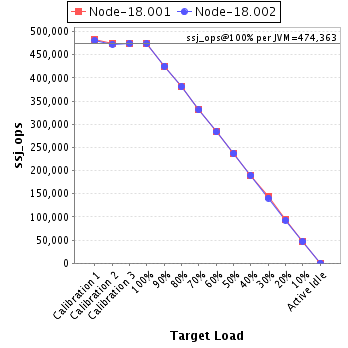

JVM 'Node-18.001' Scores:

See the JVM Instance Performance Report for additional details.

JVM 'Node-18.002' Scores:

See the JVM Instance Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.9, July 28, 2011]
